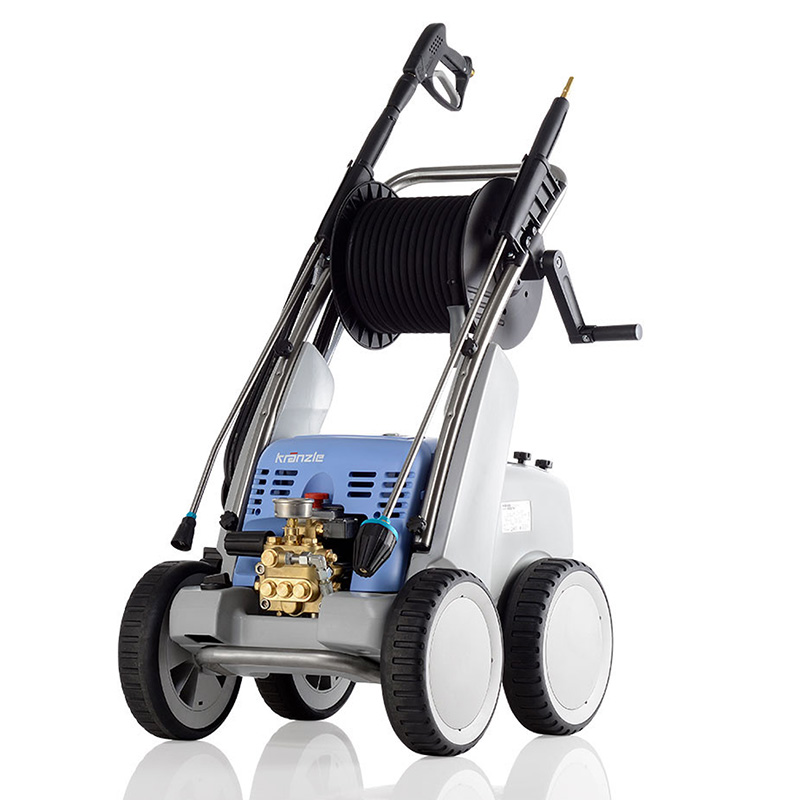

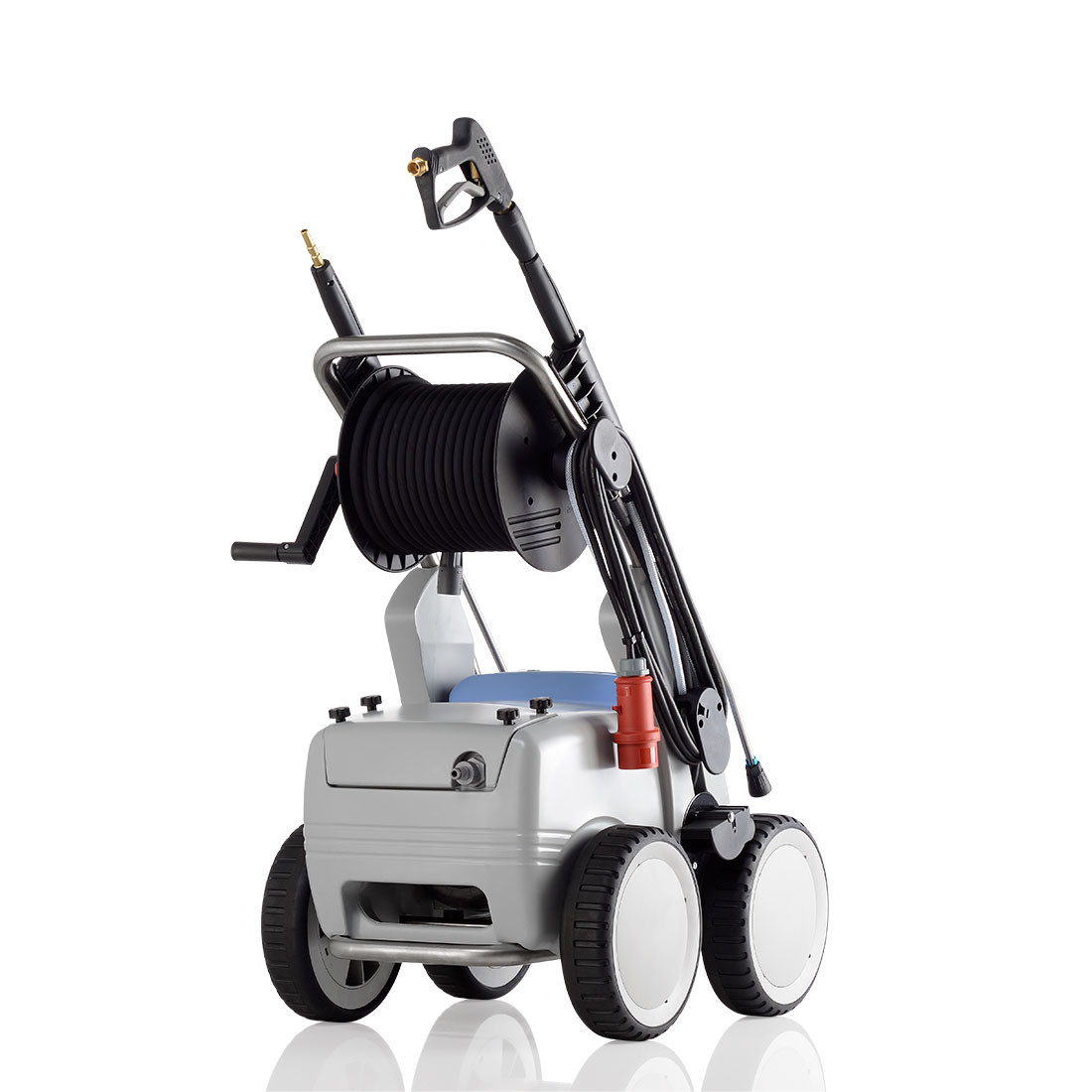

Kranzle Quadro 1000 TST – industrial high pressure cleaner that stands for reliability and power. Operating pressure at 220 bars, delivering a flow of 16 l/min. Equipped with essential features like pressure regulation, total stop system, and safety shutdown, this machine ensures optimum performance and user safety. With its convenient 12 litre water tank and space-saving hose reel. includes a 20m hose, gun, standard lance, and the turbokiller lance, ready to tackle even the toughest grime and dirt.

Features and Benefits:

Quick release plug-in system D12
Total-stop system with delayed motor cut-of
Safety shutdown
Pressure regulation
Twist-Stop screw connection
Cleaning Agent Intake
Stainless steeel chassis
Locking brake
Water tank: Volume 12 liters
Accessory storage
Stainless steel pressure gauge
Impact protection
Convenient integrated hose reel

Specification	Detail
Operating pressure	220 bar
Max. admissible overpressure	250 bar
Water flow rate	16 L/min
Motor speed	1,400 RPM (4-pole induction motor)
Power intake	7.5 kW
Electrical supply	400V
Power supply cable length	7.5 m
Dimensions (L x W x H)	770 x 570 x 990 mm
Weight	89 kg
High-pressure hose	20m, with hose reel
Trigger gun	Starlet 3, with safety catch

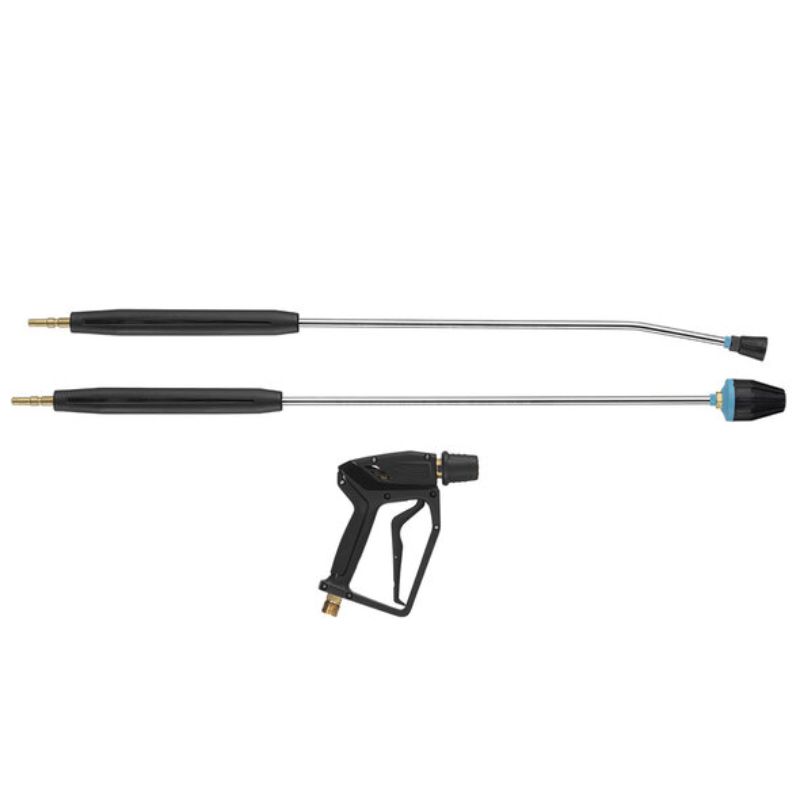

Lances included	Standard lance (nozzle 05), Dirtkiller lance (nozzle 05)
Pump	Forged brass axial pump
Motor	4-pole induction, Total Stop control
Coupling system	Quick-release D12
Ideal use	Heavy equipment cleaning, Industrial cleaning, Truck washing, Commercial cleaning
