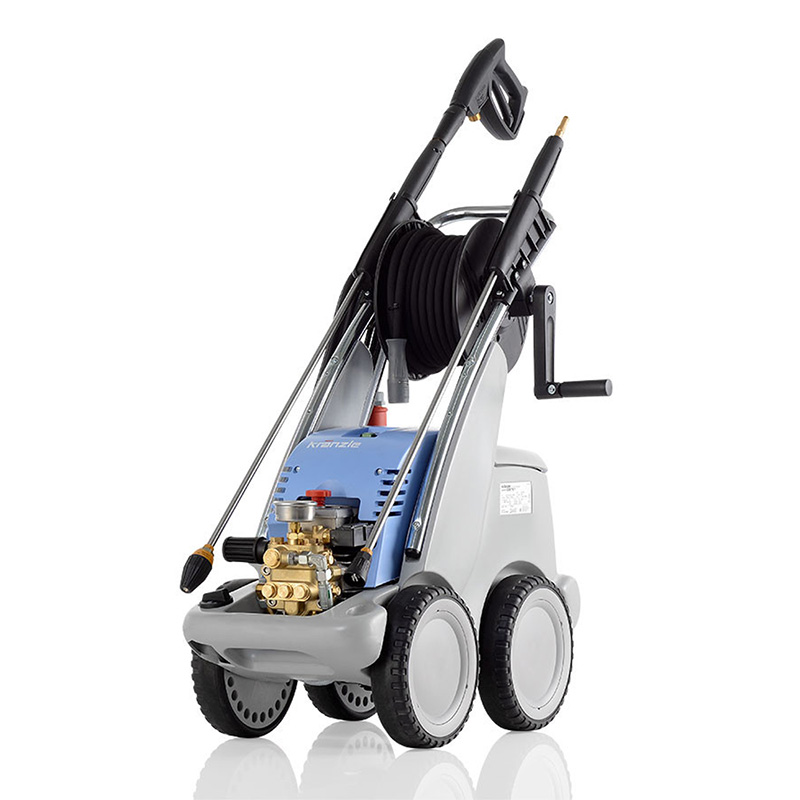

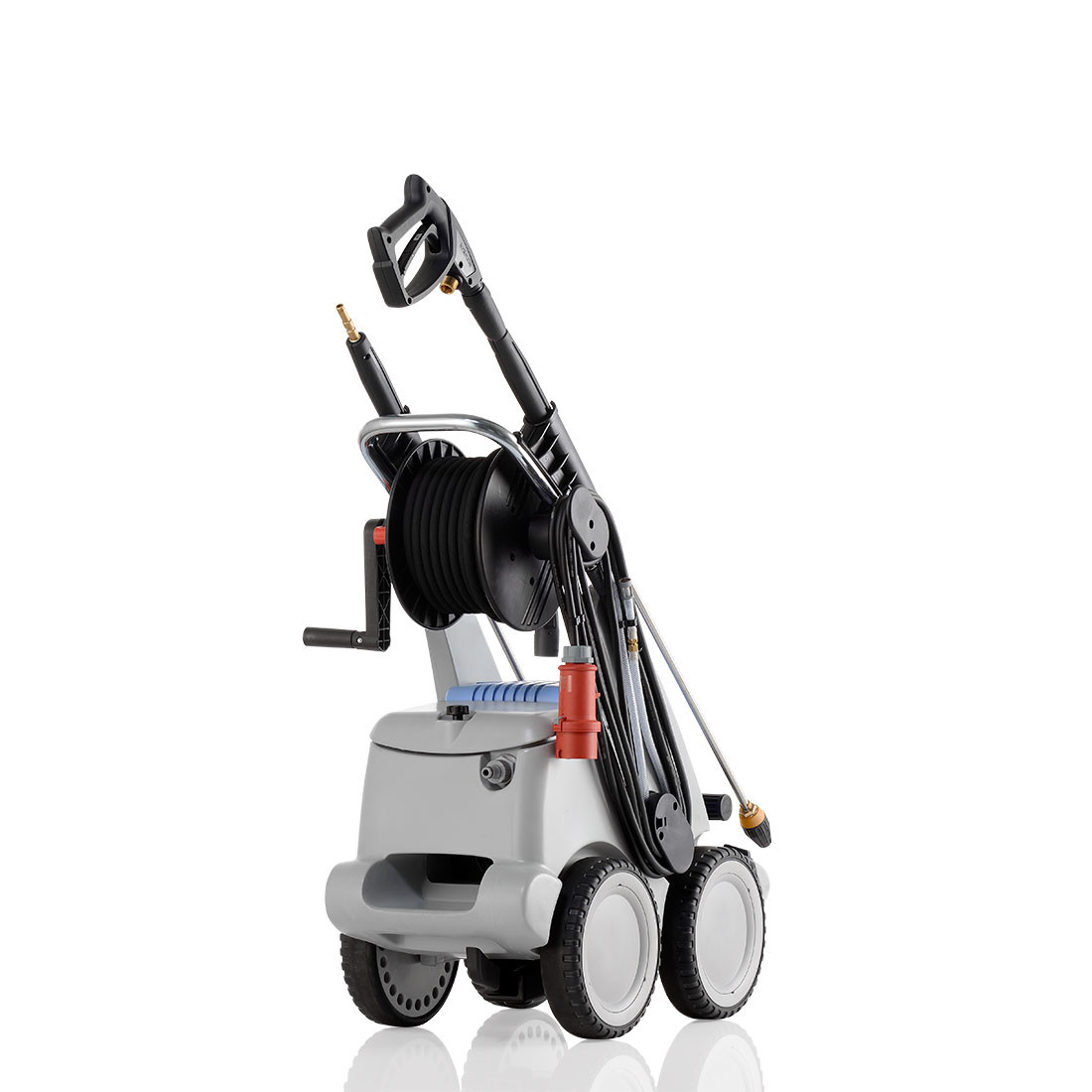

Kranzle Quadro 599 TST is a cold water high pressure cleaner with a power supply of 230V, operating at 150 bar pressure and using 10 l/min of water. The water tank helps prevent damage to the machine with its water cut off switch, integrated hose reel, pressure regulation and a stainless steel pressure gauge to monitor the operating pressure. Includes 20m hose, gun, standard and dirtkiller lance.

Features and Benefits:

Quick release plug-in system D12
Total-stop system with delayed motor cut-of
Safety shutdown
Pressure regulation
Twist-Stop screw connection
Cleaning Agent Intake
Roto-mould chassis
Locking brake
Water tank: Volume 10 liters
Accessory storage
Stainless steel pressure gauge
Impact protection
Convenient integrated hose reel

Specification	Detail
Operating pressure	150 bar
Max. admissible overpressure	165 bar
Water flow rate	10 L/min
Motor speed	1,400 RPM (4-pole induction motor)
Power intake	3.3 kW
Electrical supply	230V
Power supply cable length	5 m
Dimensions (L x W x H)	780 x 395 x 870 mm
Weight	63 kg
High-pressure hose	20m, with hose reel
Trigger gun	Starlet 3, with safety catch

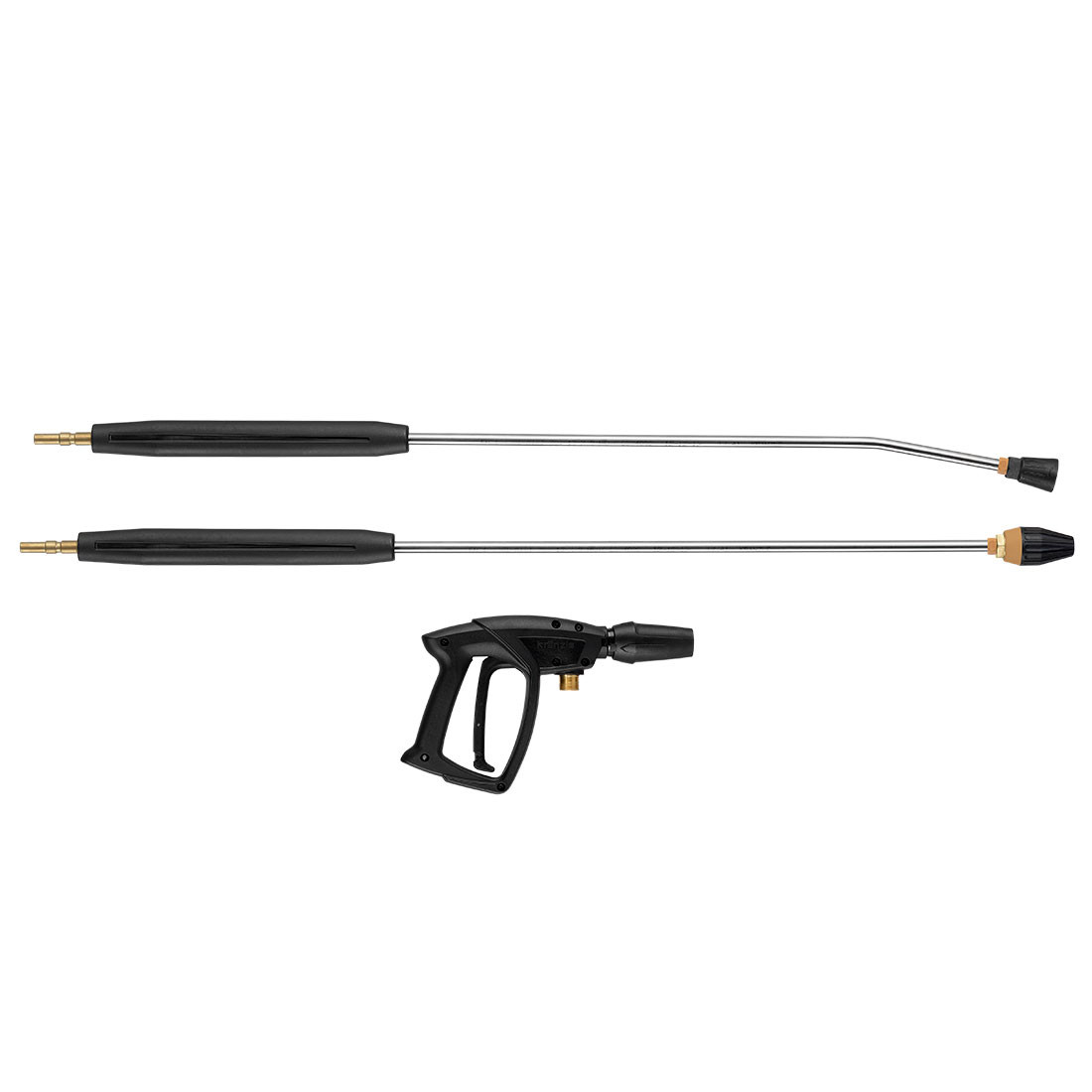

Lances included	Standard lance (nozzle 035), Dirtkiller lance (nozzle 035)
Pump	Forged brass axial pump
Motor	4-pole induction, Total Stop control
Coupling system	Quick-release D12
Ideal use	Commercial vehicle & machinery washdown, walls, floors, daily-use industrial cleaning, painting contractor
