Kranzle Core CW13/180 Pressure Washer

Kranzle Core CW13/180 Pressure Washer

kranzle cw 11
Download Brochure

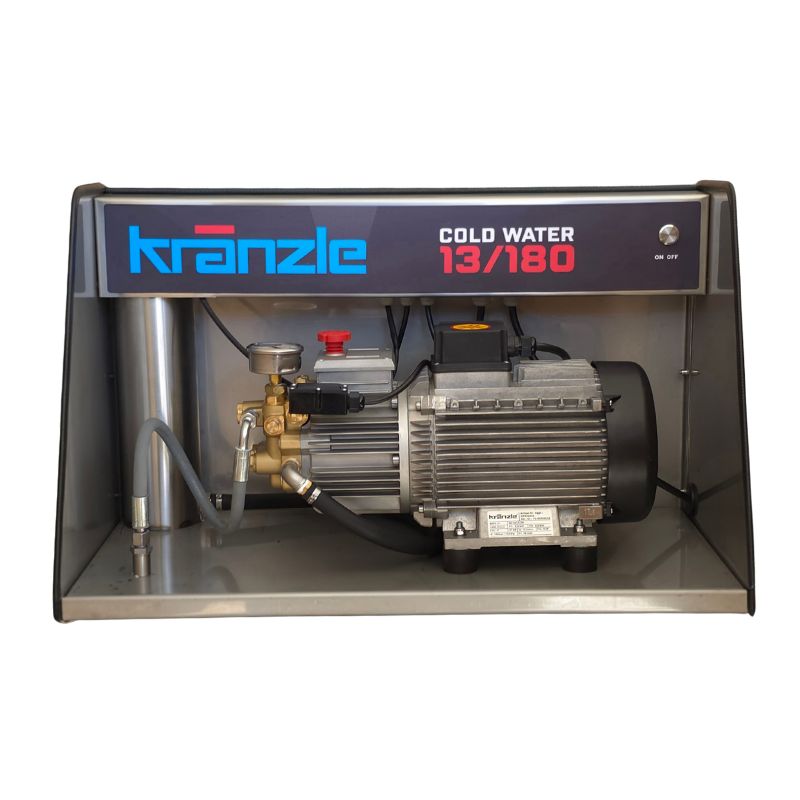

The Kränzle Core CW 13/180 Open Frame Wall-Mounted Pressure Washer is a robust, professional-grade cold water high-pressure cleaning system designed for commercial wash bays, vehicle cleaning facilities, workshops, and industrial applications. Combining Kränzle’s renowned German engineering with a compact open-frame design, the Core CW 13/180 delivers exceptional cleaning performance while maximizing workspace efficiency.

With an operating pressure of 180 bar and a water flow rate of 13 litres per minute, this unit provides the power required to tackle demanding cleaning tasks, from vehicle washing and workshop maintenance to equipment and machinery cleaning. The wall-mounted configuration keeps the unit securely positioned and off the floor, creating a cleaner, safer, and more organized work environment.

Built around a heavy-duty industrial pump and slow-running motor technology, the Core CW 13/180 is engineered for reliability, reduced wear, and long service life. The open-frame stainless steel housing provides easy access for maintenance while offering excellent durability in harsh working environments.

Features and Benefits:

  • Professional wall-mounted cold water pressure washer
  • 180 bar operating pressure
  • 13 L/min water flow rate
  • Durable open-frame stainless steel construction
  • Space-saving wall-mounted design
  • Heavy-duty industrial pump system
  • Designed for continuous commercial use
  • Easy access for servicing and maintenance
  • Reliable performance for demanding cleaning applications
  • Built to Kränzle’s renowned German engineering standards
Specification Detail
Operating pressure 180 bar
Max. admissible overpressure 200 bar
Water flow rate 13 L/min
Motor speed 1,400 RPM (4-pole induction motor)
Power intake 5.5 kW
Electrical supply 400V
Power supply cable length 5 m
Dimensions (L x W x H) 1200 x 800 x 600 mm
Weight 63 kg
High-pressure hose 10m
Trigger gun Starlet 3, with safety catch
Lances included Standard lance (nozzle 045)
Pump Forged brass axial pump
Motor 4-pole induction, Total Stop control
Coupling system Quick-release D12
Ideal use Commercial vehicle & machinery washdown, walls, floors, daily-use industrial cleaning
