Kranzle Core CW16/220 Pressure Washer

Kranzle Core CW16/220 Pressure Washer

kranzle truck wash 16220

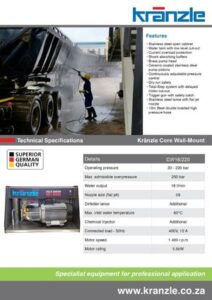

Download Brochure

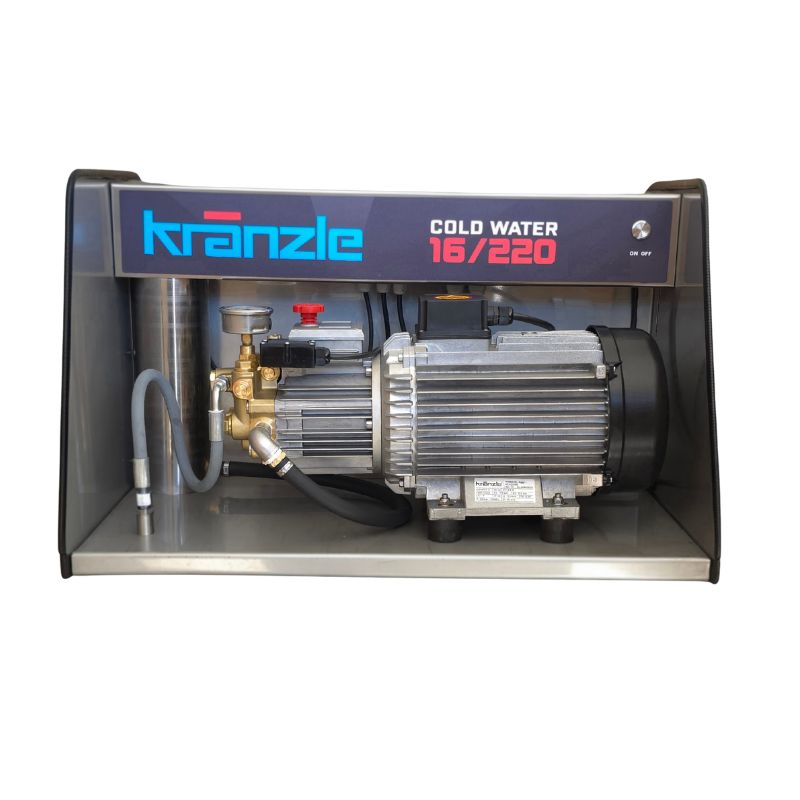

The Kränzle Core CW 16/220 Open Frame Wall-Mounted Pressure Washer is a premium industrial cold water high-pressure cleaning system engineered for demanding commercial and industrial environments. Designed for continuous operation, it combines Kränzle’s renowned German engineering with a durable open-frame wall-mounted design, making it ideal for wash bays, transport depots, workshops, manufacturing facilities, and agricultural operations.

Delivering an impressive 220 bar operating pressure and a 16 litres per minute water flow rate, the Core CW 16/220 provides the power needed to remove heavy dirt, grease, mud, and stubborn contaminants from trucks, machinery, commercial vehicles, and industrial equipment. Powered by a 400V three-phase supply with a slow-running 1400 rpm motor, it is built to provide exceptional reliability, reduced wear, and an extended service life under intensive daily use.

Features and Benefits:

  • Professional wall-mounted cold water pressure washer
  • 220 bar operating pressure
  • 16 L/min water flow rate
  • 400V three-phase power supply
  • Slow-running 1400 rpm industrial motor
  • 5.5 kW motor output
  • Durable open-frame construction
  • Space-saving wall-mounted design
  • Easy access for servicing and maintenance
  • Built to Kränzle’s renowned German engineering standards
Specification Detail
Operating pressure 220 bar
Max. admissible overpressure 250 bar
Water flow rate 16 L/min
Motor speed 1,400 RPM (4-pole induction motor)
Power intake 7.5 kW
Electrical supply 400V
Power supply cable length 5 m
Dimensions (L x W x H) 1200 x 800 x 600 mm
Weight 80 kg
High-pressure hose 10m
Trigger gun Starlet 3, with safety catch
Lances included Standard lance (nozzle 05)
Pump Forged brass axial pump
Motor 4-pole induction, Total Stop control
Coupling system Quick-release D12
Ideal use Industrial vehicle wash down, Food processing
