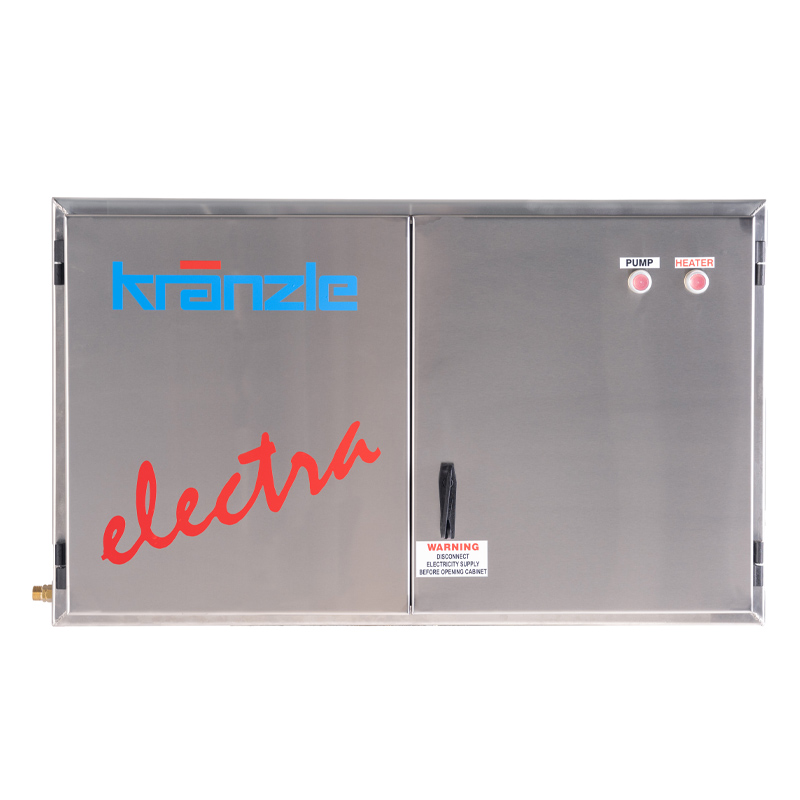

Kranzle Electra 48kW Wall-Mounted Unit

Kranzle Electra 48kW Wall-Mounted Unit

Kränzle Electra 48kW Hot Water Pressure Washer is a heavy-duty wall-mounted hot water cleaning system featuring a genuine Kränzle 799 motor and pump, delivering 180 bar pressure and 10 L/min water flow. Equipped with a powerful 48kW electric heating system, durable stainless steel cabinet, and reliable 400V three-phase, 1400 rpm motor, it provides outstanding cleaning performance for industrial and commercial applications. Supplied complete with a 10m high-pressure hose, trigger gun, and lance.

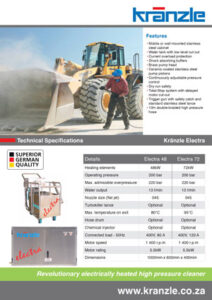

kranzle electra 48 72 brochure

The Kränzle Electra 48kW is a high-performance industrial hot water pressure washer designed for demanding cleaning applications where powerful cleaning performance and high water temperatures are essential. Manufactured locally in a durable stainless steel wall-mounted cabinet, the Electra combines proven Kränzle reliability with an efficient 48kW electric heating system, making it ideal for food processing facilities, transport depots, workshops, manufacturing plants, and commercial wash bays.

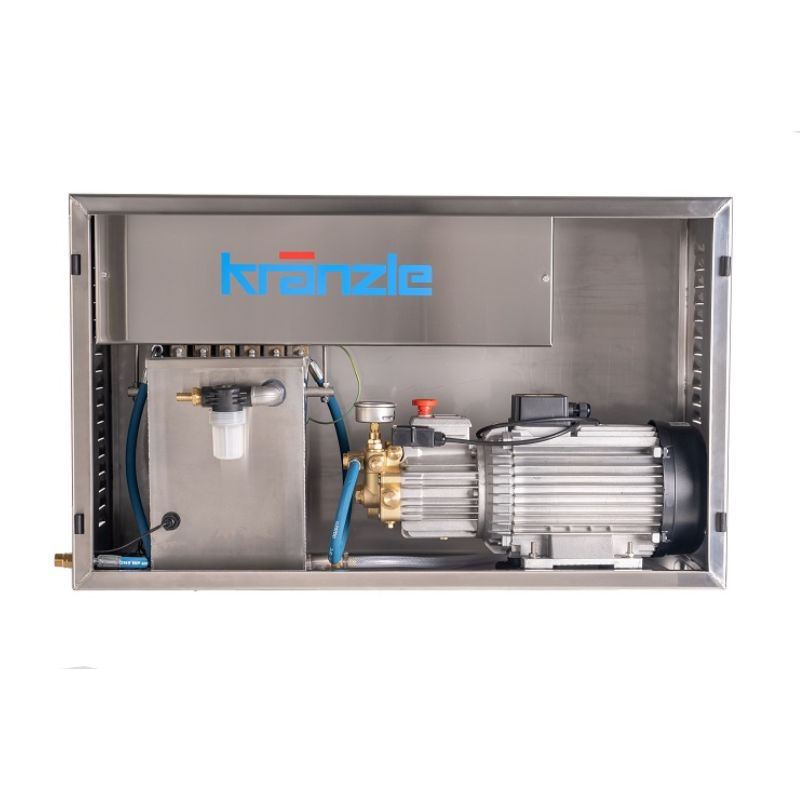

Featuring a genuine Kränzle 799 motor and pump, the unit delivers 180 bar operating pressure and 10 litres per minute water flow, providing exceptional cleaning power for removing grease, oil, dirt, and stubborn contaminants. Powered by a reliable 400V three-phase supply and a slow-running 1400 rpm motor, the Electra 48kW is built for continuous operation and long service life.

The integrated 48kW electric heating system produces a consistent supply of hot water, improving cleaning efficiency and reducing the need for excessive chemical usage. For enhanced protection and reliability, the unit is equipped with a water tank featuring a low-level water cut-out, safeguarding the motor and pump from damage caused by insufficient water supply.

Features and Benefits:

Specification Detail
Operating pressure 30–200 bar (adjustable)
Max. admissible overpressure 200 bar
Water flow rate 13 L/min
Motor speed 1,400 RPM
Power intake 7.5 kW
Heating element output 48 kW
Max. exit temperature 80°C
Electrical supply 400V (80A)
Dimensions (L x W x H) 1,200 x 800 x 600 mm
Weight 112 kg
Mounting Wall-mounted, lockable stainless steel cabinet
High-pressure hose 10 m
Trigger gun Starlet 3, with safety catch
Lance included Stainless steel, flat-jet nozzle 03
Pump Genuine Kränzle 799, brass head, ceramic-coated stainless steel pistons
Safety features Dry-run protection, low water level cut-out, current overload protection, Total Stop with delayed motor cut-out
Coupling system Quick-release D12
Ideal use Food production, wine cellars, pharmaceutical & hygiene-sensitive facilities requiring higher wash temperatures
